XSL-FO Page

XSL-FO uses a page template named "Page Masters" to define the page layout.

XSL-FO page template

XSL-FO uses a page template named "Page Masters" to define the page layout. Each template must have a unique name:

<fo:simple-page-master master-name="intro">
  <fo:region-body margin="5in" />
</fo:simple-page-master>
<fo:simple-page-master master-name="left">
  <fo:region-body margin-left="2in" margin-right="3in" />
</fo:simple-page-master>
<fo:simple-page-master master-name="right">
  <fo:region-body margin-left="3in" margin-right="2in" />
</fo:simple-page-master>

In the above example, three <fo:simple-page-master> elements define three different templates. Each template (page-master) has a different name.

The first template is named "intro". It can be used as a template for introducing pages.

The second and third templates are named "left" and "right". They can be used for even and odd page numbers on the pages.

XSL-FO Page Size

XSL-FO uses the following attributes to define page size:

page-width
Define the width of the page
page-height
Define the height of the page

XSL-FO Page Margins

XSL-FO uses the following attributes to define page margins:

margin-top
Define the top margin
margin-bottom
Define the bottom margin
margin-left
Define the left margin
margin-right
Define the right margin
margin
Define the margins of all sides

XSL-FO Page Regions

XSL-FO uses the following elements to define page areas:

region-body
Define the main area
region-before
Define the top area (header)
region-after
Define the bottom area (footer)
region-start
Define the left area (left column)
region-end
Define the right area (right column)

Note:region-before, region-after, region-start, and region-end are part of the main area. To avoid the text of the main area from overlapping these regions, the margins of the main area must be at least equal to the size of other areas.

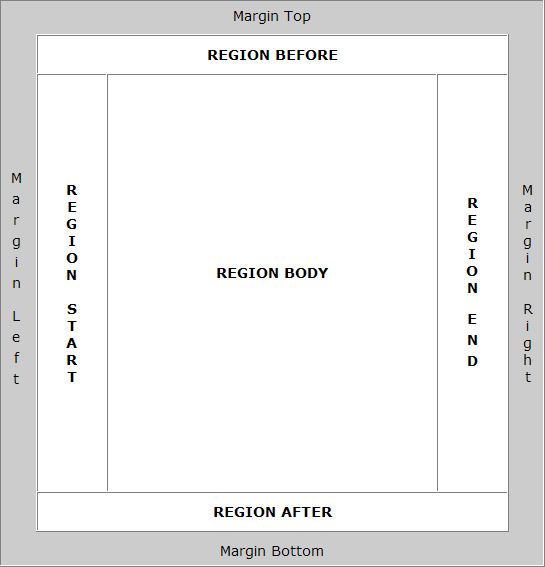

Illustration:

XSL-FO Example

This is a fragment extracted from an XSL-FO document:

<fo:simple-page-master master-name="A4">
 page-width="297mm" page-height="210mm"
 margin-top="1cm"   margin-bottom="1cm"
 margin-left="1cm"  margin-right="1cm">
  <fo:region-body   margin="3cm"/>
  <fo:region-before extent="2cm"/>
  <fo:region-after  extent="2cm"/>
  <fo:region-start  extent="2cm"/>
  <fo:region-end    extent="2cm"/>
</fo:simple-page-master>

The above code defines a 'Simple Page Master Template' named 'A4'.

The width of the page is 297 millimeters, and the height is 210 millimeters.

The four margins of the page are all 1 centimeter.

The margin of the main body is 3 centimeters (all four sides).

The before, after, start, and end regions are all 2 centimeters.

The width of the main body in the above example can be calculated by subtracting the page width, left and right margins, and the margin of region-body.

297mm - (2 x 1cm) - (2 x 3cm) = 297mm - 20mm - 60mm = 217mm.

Note:The region (region-start and region-end) is not calculated. As explained earlier, these regions are part of the main body.
